Powerful high-temperature PTFE heating cable (up to 260°C)

Price on request

Send a request and we will prepare a suitable quote.

Available to order

Estimated delivery 7-14 business days. We will confirm the exact delivery time before sending the payment link.

1
Powerful high-temperature PTFE heating cable is a splash-proof, heat-resistant, and exceptionally flexible heating cable specifically designed to operate in demanding conditions and withstand high temperatures (up to 260°C). This powerful heating cable provides wide-area heat transfer, is equipped with protective conductor braiding, and features a factory-fitted 1-meter main connection cable with an M20 x 1.5 screw connection for safe and reliable installation

Product code: 53588783

Fast delivery
Warranty
Quality

Main applications of this heating cable: Thanks to its outstanding flexibility (minimum bending radius of > 15 mm) and high temperature tolerance, this high-temperature heating cable is ideal for situations where complex-shaped parts need to be effectively heated. The primary application areas include:

  • Frost protection and temperature control of pipework and valves.

  • Temperature control of industrial machine parts and containers.

  • Heating systems for laboratory set-ups.

  • Keeping the temperature of oils, greases, waxes, and chemicals constant.

Technical data:

  • Maximum temperature: 260°C

  • Insulation: PTFE

  • Nominal voltage: Up to 500 V AC

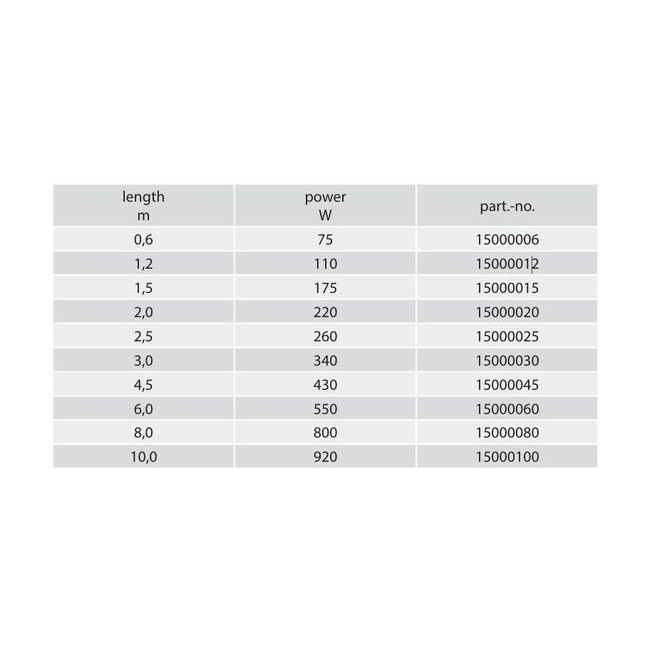

  • Rated power: approx. 35 W/m or approx. 50 W/m

  • Dimensions: 8.5 x 6 mm

  • Minimum bending radius: > 15 mm

  • Laying distance: > 10 mm

  • Protection type: IP 64 (splash-proof)

  • Protection class: I

  • Main connection cable: 1.0 m long with M20 x 1.5 screw connection
