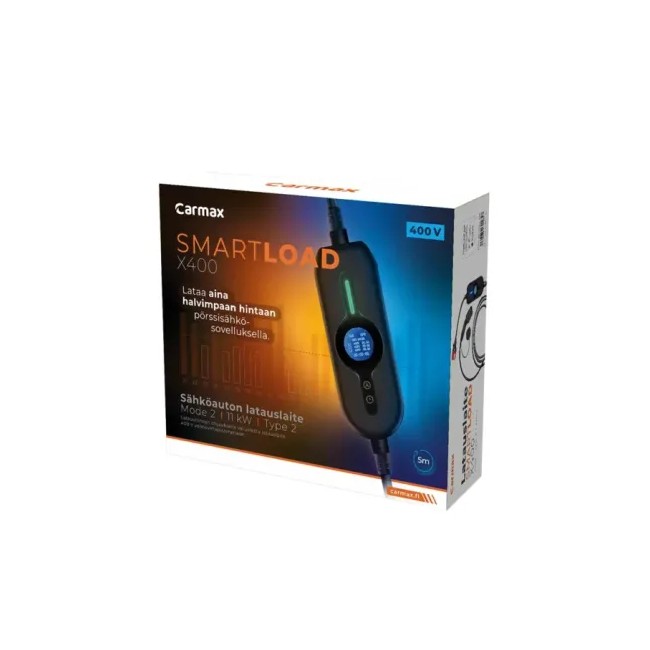

Carmax Smartload 400 V three-phase smart EV charger 11 kW

339.00 €

Price includes 24% VAT · excl. VAT 273.39 €

Available to order

Estimated delivery 7-14 business days. We will confirm the exact delivery time before sending the payment link.

1

Carmax Smartload 400 V is a portable three-phase EV charger that connects to a five-pin 400 V 16 A CEE socket. Equipped with a Type 2 connector, the electric car charger can charge an EV or plug-in hybrid with up to 11 kW of power.

Using a WiFi connection and the free Powerant app, charging can be scheduled for the lowest electricity spot-price periods or controlled with a maximum price limit. If a suitable 400 V CEE socket is already available, the charger can be used without installing a permanent wall-mounted charging station.

Product code: 52049773

Fast delivery
Warranty
Quality

Main advantages of the Carmax Smartload 400 V EV charger

  • charging based on electricity spot prices;

  • selection of the lowest-priced charging periods or a price ceiling;

  • free Powerant app for Android and iOS;

  • three-phase 400 V charging;

  • maximum charging power of 11 kW;

  • connection to a five-pin 16 A CEE socket;

  • adjustable charging current of 6, 8, 10, 13 or 16 A;

  • Type 2 charging connector;

  • approximately 5 m charging cable;

  • adjustable charging duration from 1 to 12 hours;

  • 2.4 GHz WiFi connection;

  • compact and portable design;

  • IP54 protection rating;

  • protective carrying bag included.

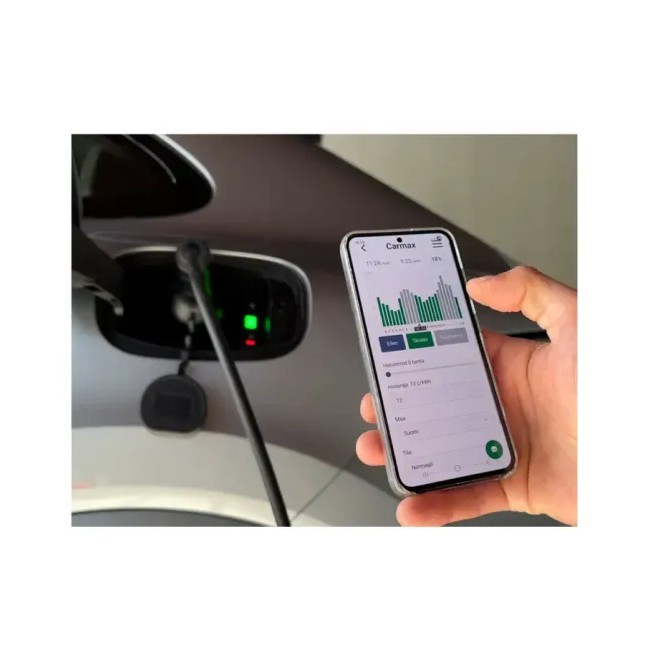

Charging based on electricity spot prices

The Powerant app allows you to select the desired number of lowest-priced charging periods or set a maximum electricity price. The smart EV charger automatically starts and pauses charging according to the selected settings.

Electricity spot-price control requires a 2.4 GHz WiFi connection at the charging location. Charging can also be started immediately without using price-based control.

Who is Smartload 400 V suitable for?

The portable 11 kW EV charger is suitable for use at home, at a holiday home, in a workshop or while travelling, provided that a compliant 400 V 16 A CEE socket is available. Its compact design makes the charger convenient to keep in the car and use at different locations.

To achieve the maximum 11 kW charging power, the vehicle must support three-phase 11 kW AC charging. The actual charging power depends on the vehicle’s onboard charger.

The CEE socket and electrical circuit must be suitable for a continuous 3 × 16 A load and protected by an appropriate residual current device. Do not use the charger with an extension cable. Protect the plugs and charging unit from direct heavy rain and snow.

Package contents

  • Carmax Smartload SMART-400 EV charger;

  • protective carrying bag;

  • user manual.

Technical specifications

  • Model: Carmax Smartload SMART-400 EV charger

  • Supply voltage: 400 V AC, three-phase

  • Maximum charging power: 11 kW

  • Maximum charging current: 16 A

  • Adjustable charging current: 6 / 8 / 10 / 13 / 16 A

  • Mains plug: CEE 16 A, five-pin, 3P + N + PE

  • Vehicle connector: Type 2

  • Cable length: approximately 5 m

  • Charging duration setting: 1–12 hours

  • Control: Powerant app

  • Price-based control: lowest-priced periods or price ceiling

  • WiFi: 2.4 GHz, IEEE 802.11 b/g/n

  • Residual current protection: Type A 30 mA + 6 mA DC

  • Protection rating: IP54

  • Operating temperature: –25 to +50 °C

  • Dimensions: 200 × 100 × 55 mm

  • Weight: 3.2 kg

  • EAN: 6430079601657

  • Standard: IEC 62752-2018
