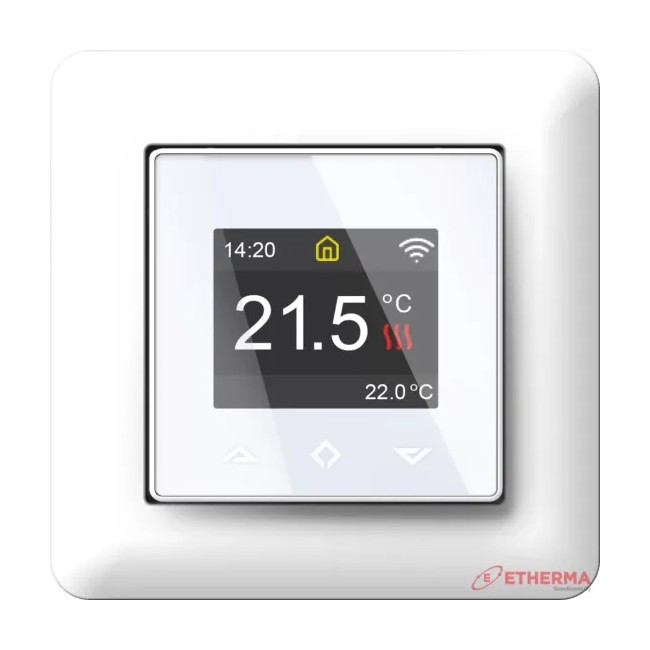

Evesta C WiFi Thermostat with Spot Price Optimisation

Evesta C is a smart WiFi thermostat with a colour display and free mobile app, designed primarily for controlling electric underfloor heating.

When used with a spot-price or dynamic electricity tariff, Evesta C automatically shifts part of the heating to lower-priced periods and reduces heating during expensive periods. You decide how much the temperature may be increased or reduced, so the thermostat helps lower heating costs without giving up control over comfort.

The thermostat supports both 15-minute and 60-minute electricity price intervals.

How does spot price optimisation work?

Evesta C follows current electricity spot prices and weather forecasts. In the app, you can choose:

• how many low-price periods should be used each day;
• how many expensive periods should be avoided;
• how much the temperature may be increased during cheaper periods;
• how much it may be reduced during expensive periods;
• absolute electricity price limits for heating.

Outside these selected periods, the thermostat maintains the normal temperature set by you.

Actual savings depend on electricity prices, the building, insulation, heating power and the selected temperature settings.

Also suitable for fixed-price electricity contracts

A spot-price electricity contract is not required to use Evesta C.

The thermostat also works as an advanced programmable WiFi thermostat with adaptive heating control. It learns how quickly the room heats up and can start heating early enough to reach the required temperature at the scheduled time.

Clear colour display and free mobile app

Evesta C has a backlit 1.8-inch colour display and three touch-sensitive control buttons. Basic settings can be adjusted directly on the thermostat.

The free Evesta mobile app provides access to:

• temperature settings;
• weekly schedules;
• spot price optimisation;
• current and upcoming electricity prices;
• energy consumption;
• estimated heating costs and savings;
• temperature and consumption history;
• notifications and alerts.

The app is available for Android and iOS, with no monthly subscription fee.

Suitable for replacing an existing thermostat

Evesta C includes a 10 kΩ floor sensor but can also be used with many existing floor sensors. This can make it possible to replace an old thermostat without opening the floor or replacing the installed sensor cable.

Compatible floor sensor values:

• 6.8 kΩ;
• 10 kΩ;
• 12 kΩ;
• 15 kΩ;
• 22 kΩ;
• 33 kΩ;
• 47 kΩ;
• 100 kΩ.

The resistance and condition of the existing sensor should always be checked before installation.

Temperature control options

Evesta C can control heating using:

• the built-in room temperature sensor;
• the supplied floor temperature sensor;
• room temperature control with a floor temperature limit;
• adjustable power regulation.

For wooden floors, a floor sensor must be used and the maximum floor temperature should be limited according to the flooring manufacturer’s instructions. A maximum limit of 28 °C is commonly used for wooden floors.

The thermostat can also control compatible electric ceiling heating and cooling systems.

Main benefits

• Heating control based on electricity spot prices
• Supports 15- and 60-minute price intervals
• Uses weather forecasts when optimising heating
• Free mobile app with no monthly fee
• 1.8-inch colour display
• Adaptive heating control
• Weekly scheduling
• Energy consumption and cost monitoring
• Broad floor sensor compatibility
• Built-in room temperature sensor
• Floor sensor included
• Maximum load of 16 A

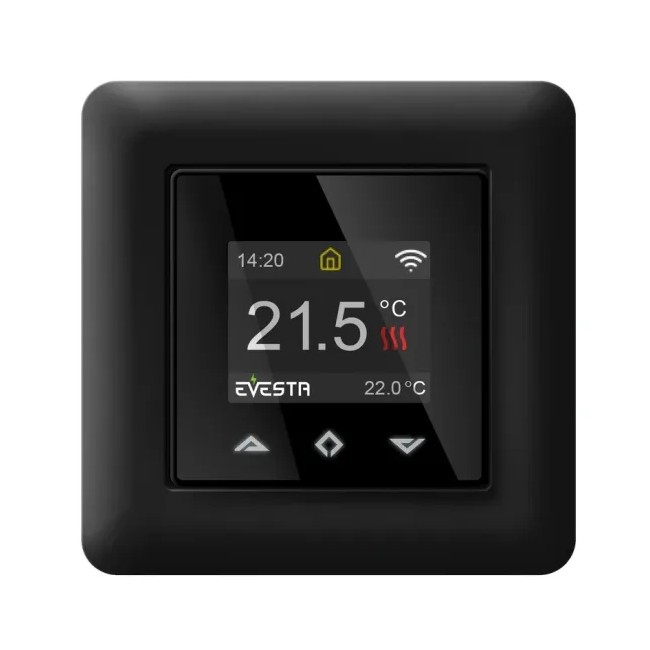

• Available in white and black
• Compatible with several common installation frame systems

Technical specifications

• Product: Evesta C smart WiFi thermostat
• Application: electric underfloor and ceiling heating
• Supply voltage: 230 VAC, 50/60 Hz
• Maximum load: 16 A, resistive
• Temperature setting range: +5 to +40 °C
• Operating temperature: 0 to +40 °C
• Display: backlit 1.8-inch TFT, 128 × 160 pixels
• Controls: three touch-sensitive buttons
• IP rating: IP21
• WiFi connection: 2.4 GHz
• Built-in room temperature sensor
• Floor sensor: 10 kΩ, 3 m cable, included
• Compatible floor sensors: 6.8–100 kΩ
• Pilot wire connection
• Colour options: white and black
• Standards: EN 60730-1, EN 60730-2-9, EN 300 328, EN 301 489-1 and EN 301 489-17

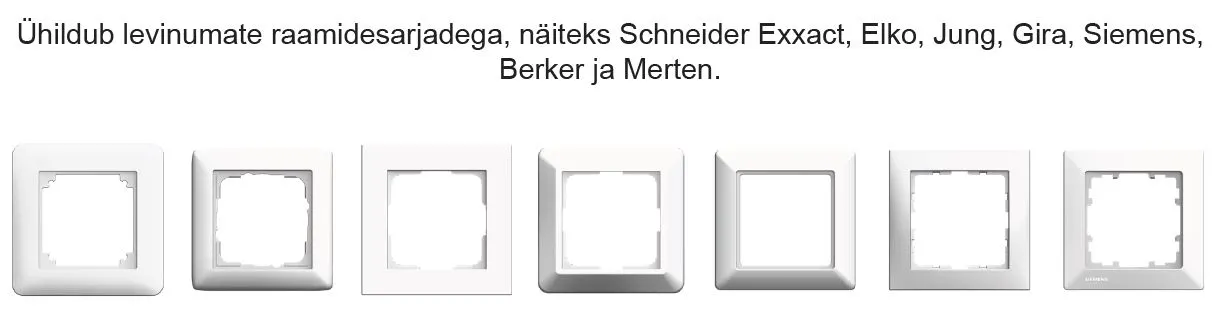

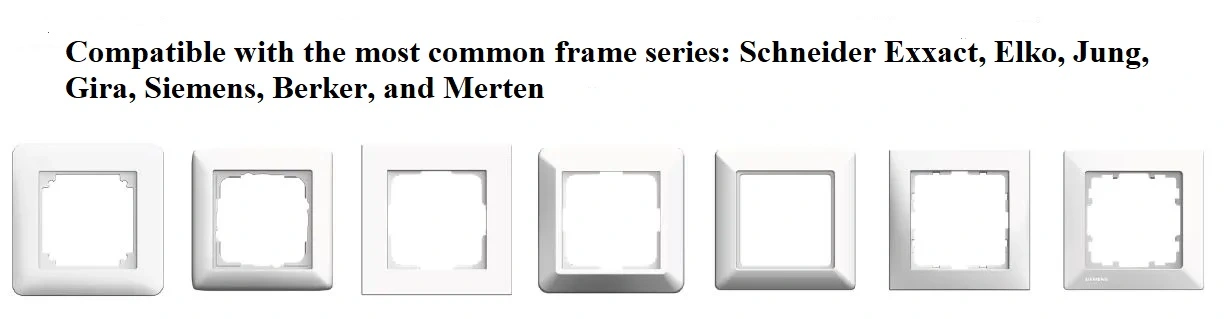

• Compatible frames: Schneider Exxact, Elko, Jung, Gira, Siemens, Berker and Merten
• Equipment manufacturer: Ouman Oy

Installation

Evesta C is a mains-powered thermostat and must be installed by a qualified electrician.

Not sure whether Evesta C is compatible with your existing floor sensor? Send us the model of your current thermostat or the measured sensor resistance, and we will help you check compatibility before ordering.
