Electric panel double thermostat with two outputs -9 +99°С

The double thermostat with two sensors Terneo K2 has a wide hysteresis of temperature switching (1 to 30°C), which allows us to adjust the temperature limits we need. Thus, it becomes possible to use the thermostat simultaneously with heating and cooling devices, maintaining the necessary temperature conditions in the room throughout the year.

The electric panel double thermostat can be controlled with only three buttons. The digital display shows the temperature and simplifies menu navigation.

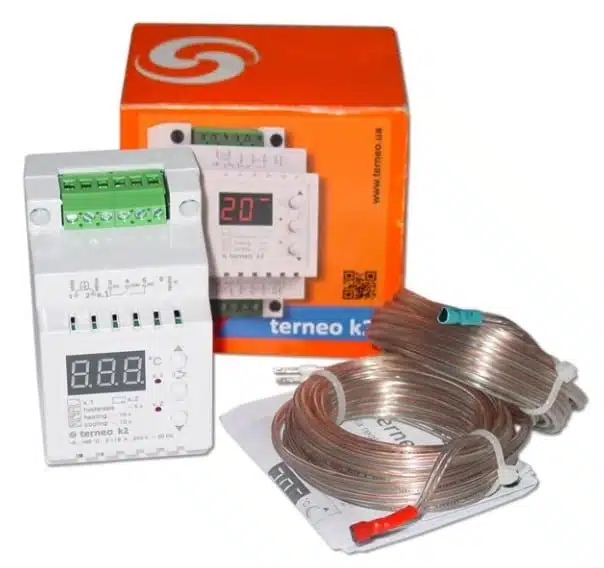

The double temperature controller is intended for installation on a standard 35 mm wide DIN rail of a distribution panel. The package also includes 2 temperature sensors with 4 m long cables.

Built-in overheating protection.
If the temperature inside the thermostat rises above +85°C, the thermostat reports overheating and stops working. It restarts when the temperature drops to +80°C.

The panel thermostat with two outputs and 2 sensors has a 2 x 16A relay
Supply voltage 230V
2 sensors included

Read more on the website of the manufacturer DS Electronics
